Product Description

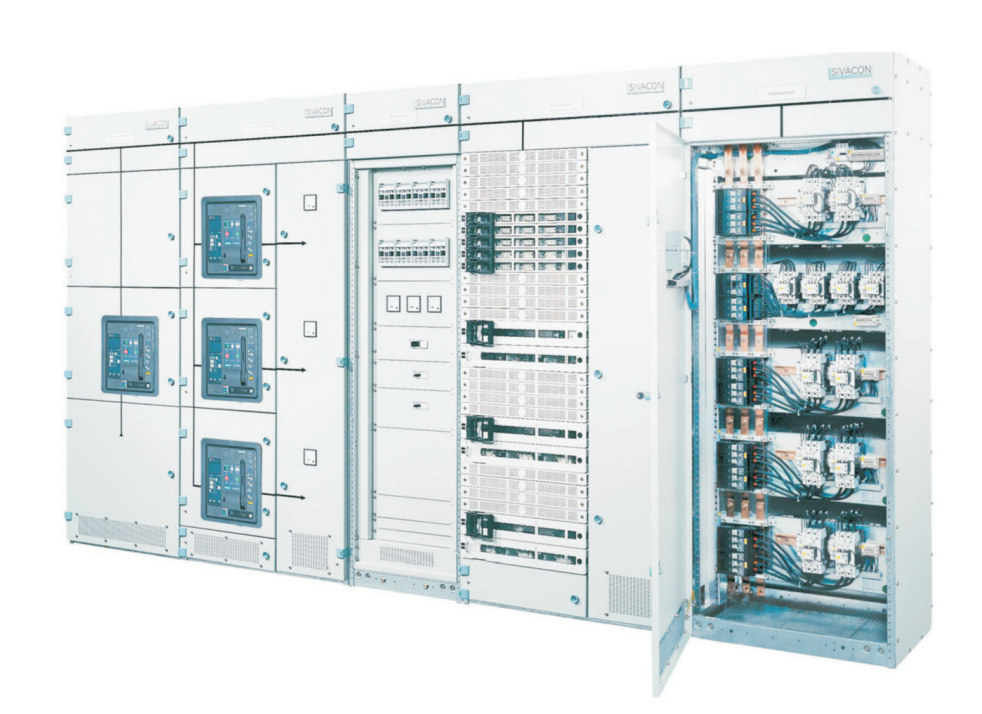

SIVACON-8PT is a new generation of low-voltage switchgear authorized by Siemens, which is widely used in all aspects of low-voltage networks, with a maximum rated current up to 6300A. SIVACON-8PT can be used as intelligent distribution center, intelligent motor control center and centralized monitoring system of power and lighting after full intelligent integration. It can be widely used in petrochemical, large-scale industrial and mining, commercial centers, airports and urban rail transit and other municipal engineering fields, and also can be used in subway environmental equipment monitoring system and intelligent power distribution system after intelligent integration.

Features

1. Modular design, optional standard cabinet type and non-standard cabinet type suitable for a variety of installation requirements, the feeder can be fixed separation or withdrawal design.

2. Horizontal busbar system rated current can be up to 6300A.

3. Not only through the type test, but also through the authority of seismic test, corrosion resistance test, automation function test and EMC test, with an independent communication compartment, to ensure intelligent integration of strong anti-interference function.

Service Conditions

1. Atitude: No more than 1,000 meters;

2. Relative Temperature: Maximum temperature no more than 40℃, minimun temperature no less than -15℃, diurnal range of temperature no more than 15℃;

3. Relative Humodity: Monthly average value no more than 90%;

4. Seismic intensity: no more than 0.4m/S², normal acceleration no more than 0.2m/S²;

5. Place of use: The place with no fire, potential of explosion, serious pollution, chemical corrosion and strenuous vibration.

Technical Specification

1. Rated impulse withstand voltage: 8KV

2. Nominal insulation voltage: AC690V/AC1000V

3. Rated operational voltage: AC400V/AC690V

4. Main busbar rated current: 630A~6300A

5. Main busbar short-time withstand current: 30KA~100KA

6. Main busbar peak withstand current: 63KA~220KA

7. Rated current of vertical busbar: 1000A

8. Vertical busbar short-time withstand current: 30KA~50KA

9. Vertical busbar peak withstand current: 63KA~105KA

10. Rated current of cable feeder circuit： Up to 630A

11. Protection Class: IP30~IP54

12. Cabinet size: Height 2200,2600mm, Width 600,800,1000,1200mm, Depth 600,800,1000,1200mm
